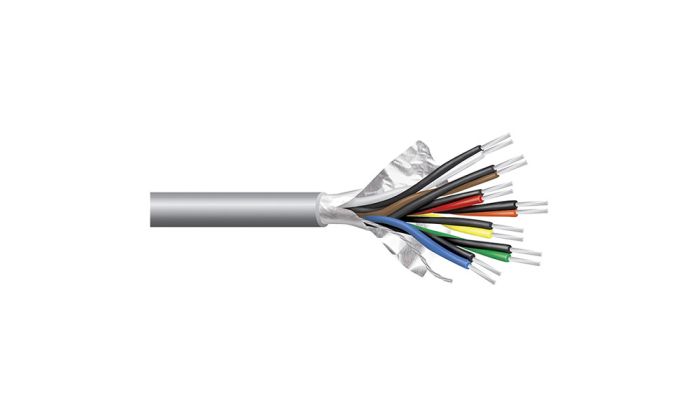

24 AWG, MULTIPAIR, OVERALL FOIL SHIELD
-
Color Codes
Chart B
Pair No. Color Combination Pair No. Color Combination 1 Black paired with Red 15 Green paired with Blue 2 Black paired with White 16 Green paired with Yellow 3 Black paired with Green 17 Green paired with Brown 4 Black paired with Blue 18 Green paired with Orange 5 Black paired with Yellow 19 White paired with Blue 6 Black paired with Brown 20 White paired with Yellow 7 Black paired with Orange 21 White paired with Brown 8 Red paired with White 22 White paired with Orange 9 Red paired with Green 23 Blue paired with Yellow 10 Red paired with Blue 24 Blue paired with Brown 11 Red paired with Yellow 25 Blue paired with Orange 12 Red paired with Brown 26 Brown paired with Yellow 13 Red paired with Orange 27 Brown paired with Orange 14 Green paired with White
Description
MULTIPAIR OVERALL FOIL SHIELD
300V - 24 GUAGE
DESCRIPTION:
Each Conductor is Stranded (7/32) Tinned Copper, Nominal Insulation Thickness .010" Conductors Twisted into Pairs. Overall Mylar Supported Aluminum Foil Shield, Stranded Tinned Copper Drain Wire, Gray Polyvinylchloride Jacket Overall.
SPECIFICATIONS:
- UL Listed, NEC Type CM, 75C
- UL AWM Style 2464, 80C, 300V
- CSA Certified PCC FT-4
| Min Temperature | -30°C |
|---|---|
| Max Temperature | 80°C |
| Voltage | 300V |
| Special | No |
| Weico No. | AWG SIZE | NO. OF PAIRS | NO. OF CONDUCTORS | NOM. JACKET THICKNESS (INCHES) | NOM. O.D. (IN) | |
|---|---|---|---|---|---|---|
| 7302 | 24 | 1 | 2 | 0.032 | .156 | |
| 7304 | 24 | 2 | 4 | 0.032 | .222 | |
| 7306 | 24 | 3 | 6 | 0.032 | .232 | |
| 7308 | 24 | 4 | 8 | 0.032 | .265 | |
| 7310 | 24 | 5 | 10 | 0.035 | .295 | |
| 7312 | 24 | 6 | 12 | 0.035 | .295 | |
| 7314 | 24 | 7 | 14 | 0.035 | .300 | |
| 7316 | 24 | 8 | 16 | 0.035 | .330 | |
| 7318 | 24 | 9 | 18 | 0.035 | .340 | |
| 7320 | 24 | 10 | 20 | 0.040 | .380 | |
| 7330 | 24 | 15 | 30 | 0.040 | .425 | |
| 7338 | 24 | 19 | 38 | 0.040 | .460 | |
| 7350 | 24 | 25 | 50 | 0.045 | .515 | |
| 7300* | 24 | 50 | 100 | 0.050 | .700 |
*Consult factory for color code
Standard Put-Ups: 100 ft., 500 ft., 1000 ft.
